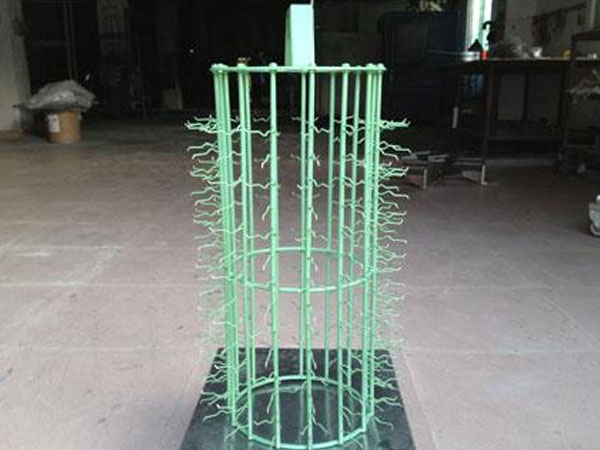

How to make the hanger

The utility model discloses a hanger, which includes a support frame, a hanger rod, a hanger clamp and a drive assembly; the hanger rod is connected to the support frame through a rotating bearing seat; the drive assembly is connected with the hanger rod to drive the hanger rod to make Axial movement; the hanger clamp is fixed on the hanger rod and rotates with the axial movement of the hanger rod. The hanger has a simple and firm structure, can drive the clamped products to rotate, and can not

New fixture hanger

New fixture hanger(1) The fixture hanger accessories are mostly designed to be fixed with screws with multiple holes, or, designed to buckle, directly snap to the square strip(2) Stainless steel, manganese steel, carbon steel, spring steel are selected for the material of the fixture hanger, and the resilience should be more stable.(3) The fixture hanger structure, the main pole is connected by welding, and the other parts are fixed by screws. The mounting position of the parts should be conveni

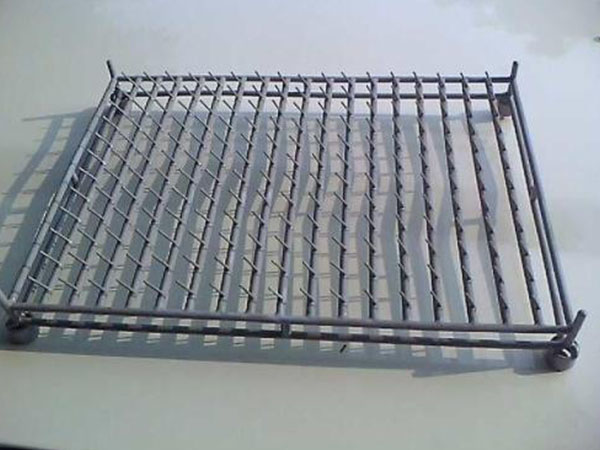

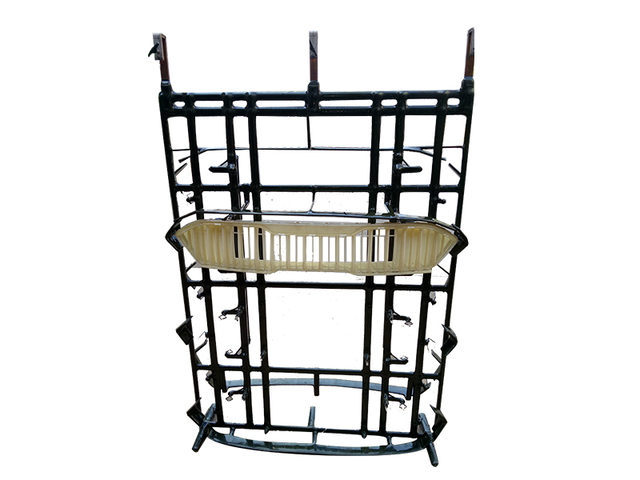

The structure of the hanger

The hanger is generally composed of a hanger, shrapnel, hook, main pole, and square tube, and is used in the coating surface treatment industry. The design of screw fixing or buckle can be disassembled and reassembled according to the size and shape of the product, which improves the utilization rate and saves inventory space and expenses. It is directly plugged into the production line or rotating shaft, which is easy to use and operate.

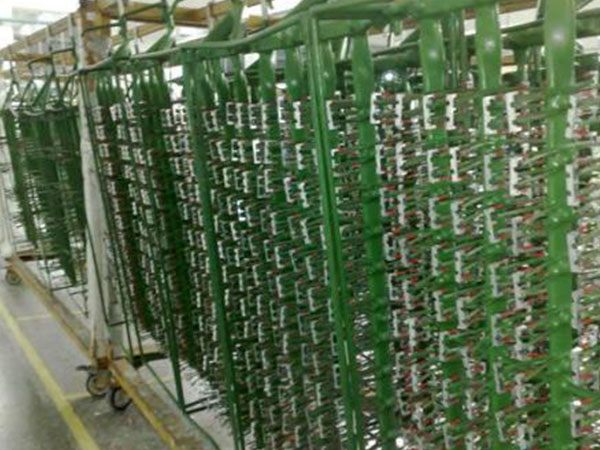

Do the following when designing the hanger

When designing the hanger, do the following:1) According to the shape and size of the parts and the capacity of the plating tank, determine the overall dimensions of the hanger.2) The bottom of the hanger should be kept at least 200mm away from the bottom of the tank. The bottom of the anode should be about 150mm shorter than the hanger. If the anode is longer, the bottom can be wrapped with plastic cloth.

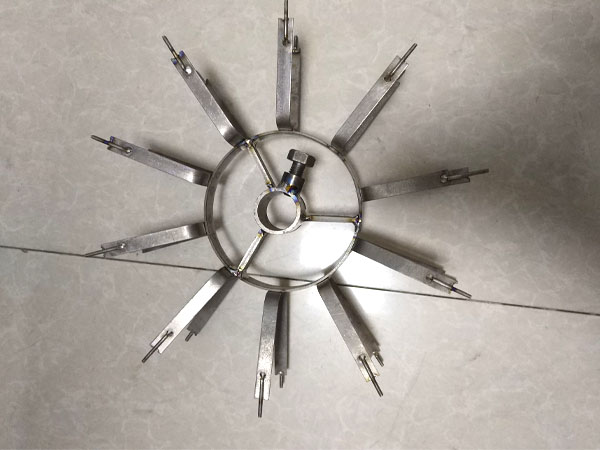

What are the benefits of using titanium hangers

Titanium hanger is one of the more commonly used in our current factory, because its performance is better than other materials. And in the current factories, the use of titanium hangers is more suitable. Of course, the best materials for hangers used in different factories are different, and more titanium hangers need to be used.

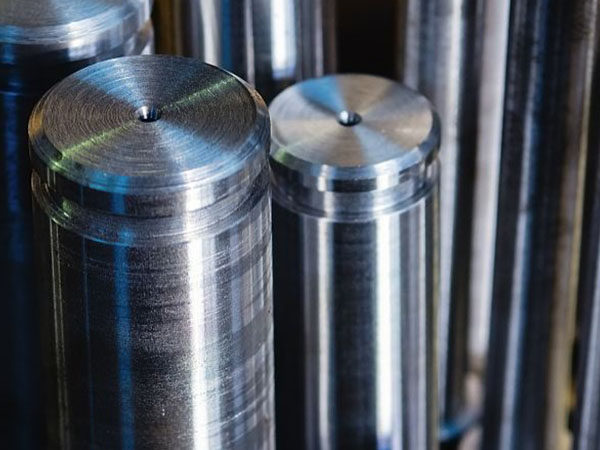

Angda company hanger product series

The company has introduced the technology and production technology of electroplating hangers from Hong Kong, and has accumulated many years of practical experience in producing hangers. Professionally refined all kinds of hangers. Such as printed circuit boards, lamps, locks, sanitary ware, automobile and motorcycle hangers, brake calipers, glasses hangers, and various cage, anodized, painted hangers and so on. Accept customer processing, dipping and baking business. At the same time, it also a
